DS-2CD1043G0E-I

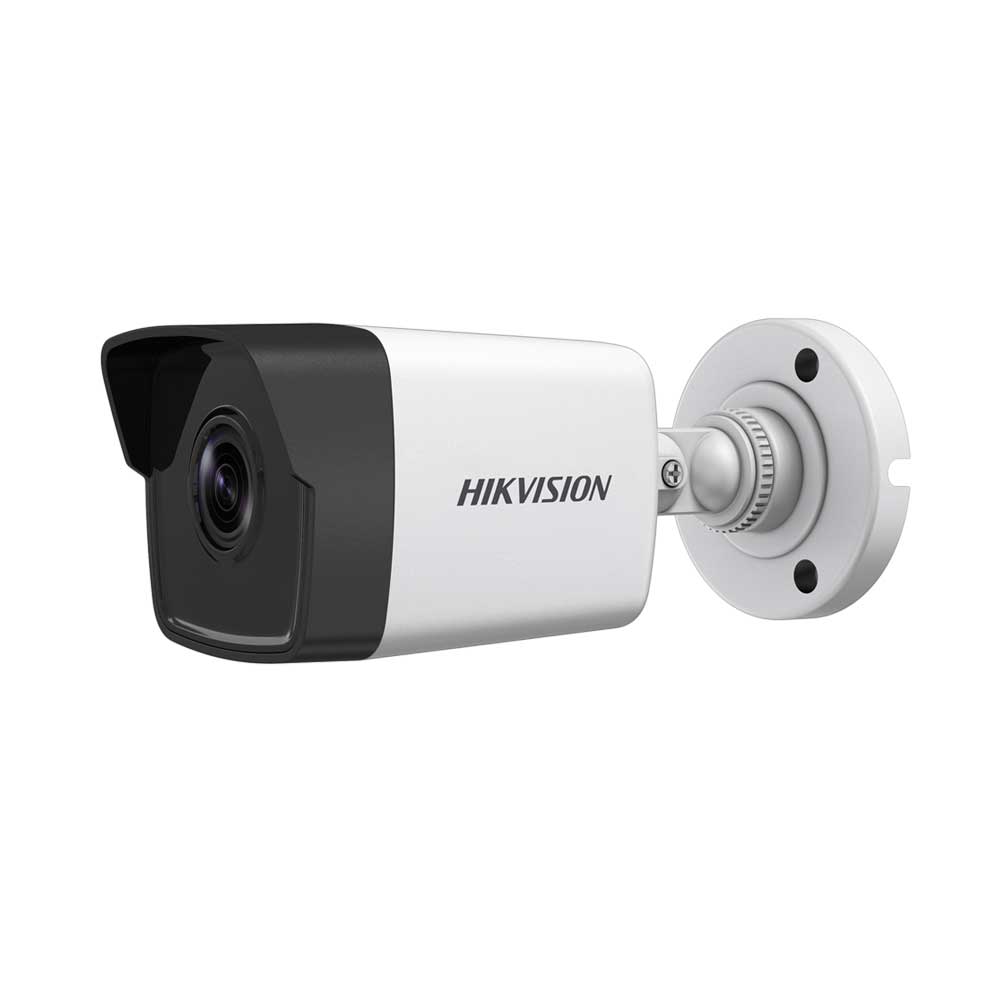

Camera DS-2CD1043G0E-I Quảng Ninh

Camera DS-2CD1043G0E-I Quảng Ninh

Camera

Image Sensor1/3″ progressive scan CMOSMin. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON)Shutter Speed1/3 s to 1/100, 000 sSlow ShutterYesAuto-IrisNoDay &NightIR cut filterDNR (Digital Noise Reduction)3D DNRWDR (Wide Dynamic Range)Digital WDRAngle Adjustment (Bracket)Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°LensFocal Length2.8 mm, 4 mm, 6 mmApertureF2.0FocusNoFOV

2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°

4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°

6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 58°

Lens MountM12IRIR RangeUp to 30 mWavelength850 nmCompression Standard
Video Compression

Main stream: H.265/H.264

Sub stream: H.265/H.264/MJPEG

H.264 TypeBaseline Profile/Main Profile/High ProfileH.264+Main stream supportsH.265 TypeMain ProfileH.265+Main stream supportsVideo Bit Rate32 Kbps to 8 MbpsSmart Feature-setRegion of Interest1 fixed region for main stream and sub-stream


Max. Resolution2560 × 1440

Main Stream

Max. Frame Rate

50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)

60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)

Sub-stream

Max. Frame Rate

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Image EnhancementBLC, 3D DNRImage SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browserDay/Night SwitchAuto, scheduled

Network

Network StorageNAS (NFS, SMB/CIFS)Alarm TriggerMotion detection, video tampering alarm, illegal loginProtocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour

General Function

Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Firmware Version

5.5.3

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users

3 levels: Administrator, Operator, and User

Client

iVMS-4200, Hik-Connect, iVMS-5200

Web Browser

IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

Communication Interface1 RJ45 10M/100M self-adaptive Ethernet portGeneral

Operating Conditions

-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, 5.5 mm coaxial power plug

PoE (802.3af, class 3)

Power Consumption and Current

12 VDC, 0.4 A, Max: 5 W

PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W

Protection Level

IP67

TVS 2000V lightning protection, surge protection and voltage transient protection

Material

Metal & Plastic

Dimensions

Camera: Ø 70 mm × 172.7mm ( 2.7″ × 6.8″)

With package: 216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)

Weight

Camera: approx. 280 g (0.62 lb.)

With package: approx: 530 g (1.17 lb.)
